MH-600T-KFA
MASTER HEATER MH-600T-KFA COMMON REPLACEMENT PARTS| 70-015-0750 | Nozzle Kit |
| 70-006-0300 | Fuel Filler Filter |
| 70-020-0700 | Magnecit Pump Assembly |
| 70-019-0500 | Thermostat |
| 70-052-0400 | Spark Plug Kit |

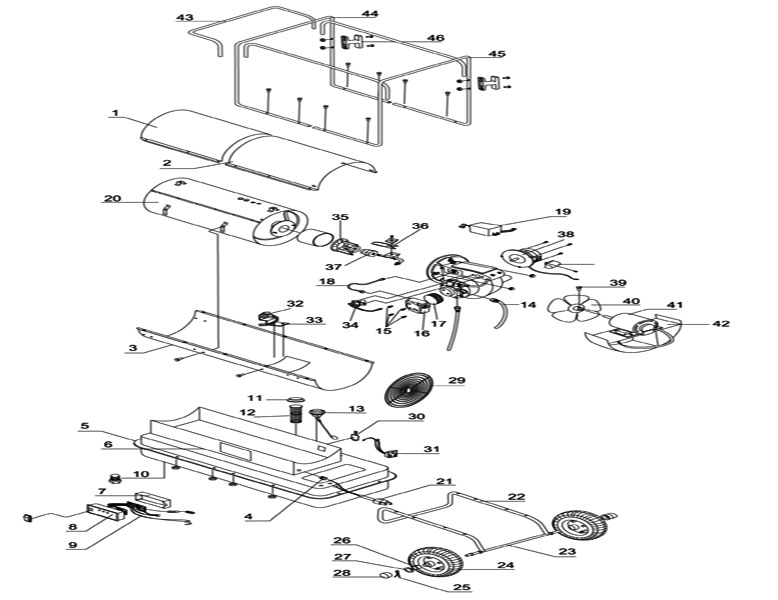

| 1 | NOT USED | Upper Front Shell |
| 2 | NOT USED | Upper Rear Shell |
| 3 | NOT USED | Lower Shell |
| 4 | 70-033-0200 | Cord Bushing |
| 5 | NOT USED | Feul Tank |
| 6 | 70-008-0610 | Right Side Cover |
| 7 | 70-027-0801 | PCB Case |
| 8 | 70-027-0800 | PCB Assembly |
| 9 | 70-027-0802 | PCB Lead Wire |
| 10 | 70-002-0107 | Drain Plug |
| 11 | 70-006-0200 | Fuel Cap Assembly |
| 12 | 70-006-0300 | Fuel Filling Filter |
| 13 | 75-007-0400 | Fuel Gauge Assembly |
| 14 | 70-036-1000 | Fuel Line |
| 15 | 70-006-0502 | Fuel Filter Cover Screw |
| 16 | 70-006-0503 | Fuel Filter Cover Screw |
| 17 | 70-006-0501 | Fuel Filter Cover Screw |
| 18 | 70-036-01001 | Drain Line |
| 19 | 70-037-0800 | Igniter |
| 20 | NOT USED | Combustion Chamber |
| 21 | 70-034-0300 | Power Cord |
| 22 | 70-064-0200 | Wheel Support Frame |
| 23 | 70-041-0403 | Wheel Axle |
| 24 | 70-041-0113 | Wheel |
| 25 | 70-041-0107 | Cotter Pin |
| 26 | 70-041-0109 | Wheel Bushing |
| 27 | 70-041-0105 | Flat Washer |
| 28 | 70-041-0111 | Wheel Cap |
| 29 | 70-065-0200 | Saftey Guard |
| 30 | 70-030-0100 | Socket Cover |
| 31 | 70-029-0100 | Electric Outlet Assembly |
| 32 | 70-019-0500 | Thermostat Bracket |
| 33 | 70-019-0501 | Thermostat Bracket |
| 34 | 70-016-0160 | Photocell Assembly |
| 35 | 70-014-0800 | Burner Head |
| 36 | 70-052-0500 | Spark Plug |
| 37 | 70-015-0800 | Nozzle |
| 38 | 70-063-0201 | Burner Motor |
| 39 | 70-024-0805 | Fan Fixing Screw |
| 40 | 70-024-0800 | Fan Assembly |
| 41 | 70-021-0800 | Fan Motor Assembly |
| 42 | 70-020-0408 | Motor Supporter |
| 43 | 70-042-0400 | Front Handle |
| 44 | 70-042-0401 | Handle Frame |
| 45 | 70-043-0400 | Rear Handle |
| 46 | 70-032-0200 | Cord Wrap |
Service Manual
